This catalog section has been broken down into smaller sections for faster download and viewing. Click on the appropriate section to open an information window. Along with more information on the cylinder, you will be able to access the catalog section of that cylinder. Click "pdf" to view in your web browser or right-click and select "Save-As..." to download to your computer. You will need a pdf viewer to view these files.
A full catalog can be downloaded on the "Downloads" page. Introduction to Cylinders (pdf)
A full catalog can be downloaded on the "Downloads" page. Introduction to Cylinders (pdf)

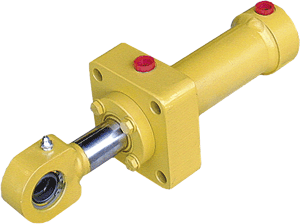

Bolt-on Heavy Duty
BORE:
WORKING
PRESSURE:
PRESSURE:
1.50" to 10.00"
3,000 PSI

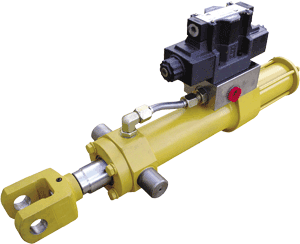

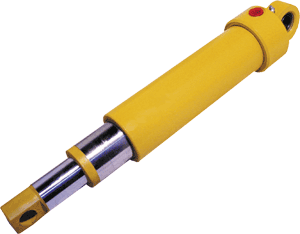

TeMposonic
BORE:
WORKING
PRESSURE:
PRESSURE:
2.00" to 10.00"
3,000 PSI

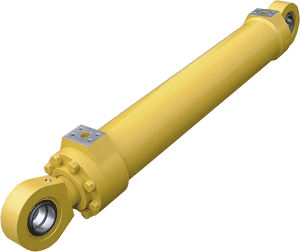

EXtra Heavy Duty
BORE:
WORKING
PRESSURE:
PRESSURE:
2.50" to 8.00"
5,000 PSI

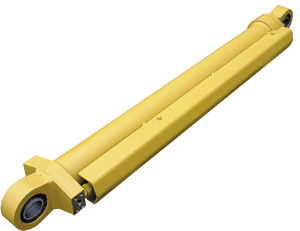

THumb
BORE:
WORKING
PRESSURE:
PRESSURE:
2.00" to 6.00"
5,000 PSI

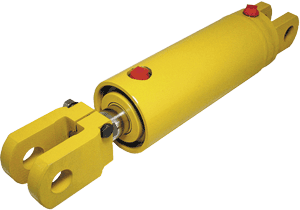

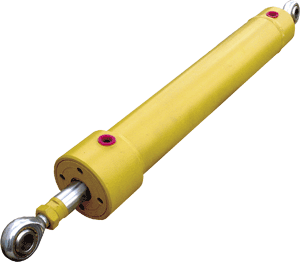

Internal Thread
BORE:
WORKING
PRESSURE:
PRESSURE:
2.00" to 6.00"
2,500 PSI

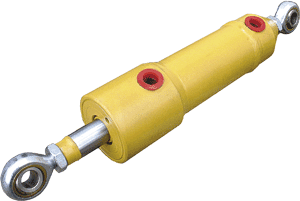

Miniature Internal Thread
BORE:
WORKING
PRESSURE:
PRESSURE:
0.75" to 2.00"
2,500 PSI

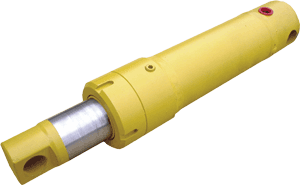

Single-acting Internal Thread
BORE:
WORKING
PRESSURE:
PRESSURE:
1.25" to 3.25"
2,500 PSI

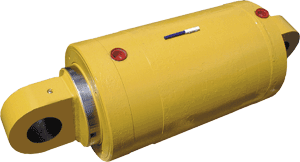

Large Bore
BORE:
WORKING
PRESSURE:
PRESSURE:
9.00" to 24.25"
3,000 PSI

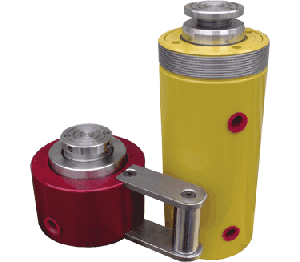

Jack
BORE:
WORKING
PRESSURE:
PRESSURE:
2.00" to 8.25"
10,000 PSI
Snap Ring
BORE:
WORKING
PRESSURE:
PRESSURE:
2.00" to 4.00"
2,000 PSI

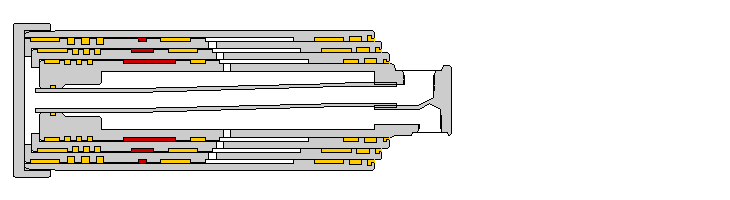

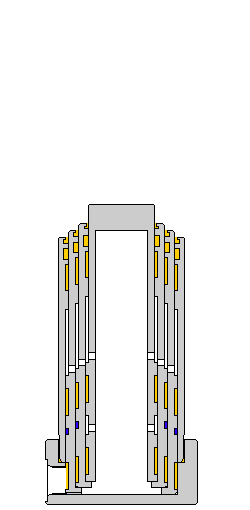

TeleSscopic
BORE:
WORKING
PRESSURE:
PRESSURE:
2.00" to 8.00"
3,000 PSI

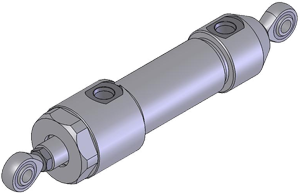

Stainless Steel
BORE:
WORKING
PRESSURE:
PRESSURE:
1.00" to 2.88"
3,000 PSI

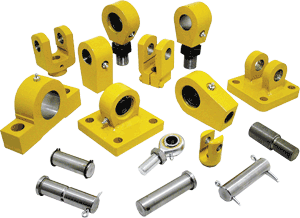

Mounting
Includes: Spherical Bearings, Clevis', Eyes, Bushings, Brackets, Pins, Jam Nuts, Seal Kits and more...
